Product Description
Purpose and fit

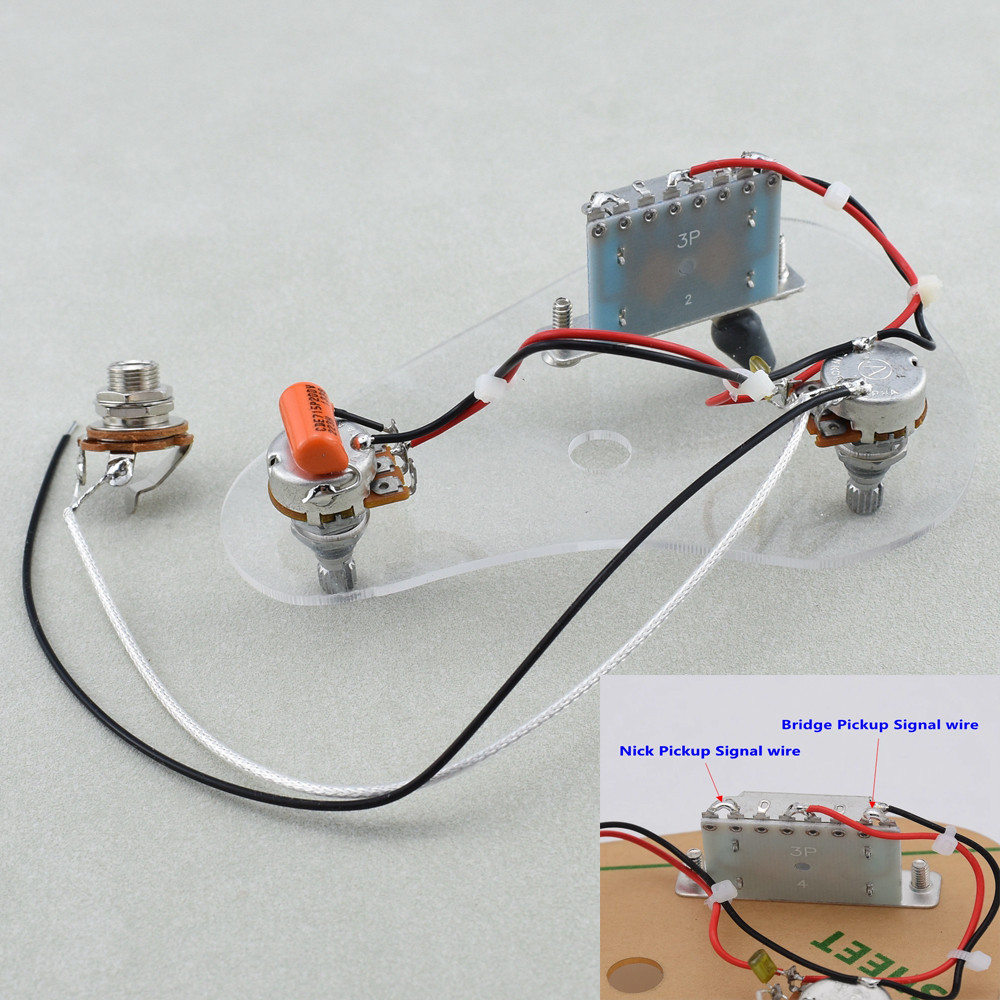

Pre-wired 3-way control harness for two-pickup electric guitar projects. The switch, controls and output jack are assembled on a clear working template for easier installation planning.
Key specifications
- Selected configuration: 3-way wiring harness
- 2 × Alpha 500K potentiometers, made in Korea
- 1 × Alpha 3-way switch, made in Korea
- 1 × CDE 0.022 µF capacitor, made in USA
- 1 × treble-bleed capacitor, made in Japan
- 1 × output jack, made in Korea
- Approximate set weight: 75 g
Package contents
1 × assembled 3-way guitar wiring harness. Pickups and instrument are not included.
Installation note
Confirm control-cavity space, shaft length, switch layout and wiring requirements before ordering. Pickup leads and grounding normally require soldering.
Before installation
Compare all listed measurements, mounting points and the selected configuration with your cabinet or instrument before ordering. Installation and electrical work should be carried out carefully; seek a qualified repairer if required.
Care
Keep parts clean and dry. Images show the selected supplied configuration; instruments, cabinets and workshop props are not included unless listed.
